RFID tag privacy concerns


Here are a few of our concerns and questions about the current media spin about Auto-ID Radio Frequency ID tags. They are currently experimental, but we would prefer that the necessary security and privacy technology, such as the ability to deactivate RFID tags at the checkout is built in from the start, and that cheaper, less capable systems such as that being used in the Tesco trial below are not even considered for use on the public.

Tell us what you think

email: [email protected]


  1. Why not just use a barcode instead of an RFID tag ?
  2. Electronic Product Codes the dark side of RFID ?
  3. Is constant exposure to UHF radio energy safe ?
  4. A law about RFID tags ?
  5. Are RFID tags covered by computer "hacking" laws ?
  6. RFID tags and Product Recalls
  7. RFID no use against CBRN terrorism or criminal contamination
  8. Radio tags - another Wi-Fi ?
  9. RFID in banknotes unlikely to work as feared
  10. Full Smart Card crypto handshake tech for less than a penny ?
  11. EPC Global Inc. should forbid "stupid" RFID tags from the standards
  12. Who is campaigning on RFID privacy issues ?
  13. Consumer protests against RFID tag trials
  14. Tesco Sandhurst RFID tagged DVDs
  15. Marks & Spencer clothing tags
  16. VeriChip human implanted RFID evil
  17. Forthcoming Conferences which need Consumer Privacy input
  18. RFID privacy websites and blogs
  19. EPC UHF Generation 2 protocol
  20. Future RFID technology - Real Soon Now
  21. RFID tag activated bombs
  22. RFID industry lobbyists

1. Why not just use a barcode instead of an RFID tag ?

Bar Codes, which can be read by cheap laser scanners , and when these fail, have a Universal Product Code number printed on them which can be read by a human are very cheap and reliable.

Despite the hype, RFID tags are not a new technology, they have been around for many years, and are used in re-usable tags and transponders (due to the cost) to track pallets, stillages, containers etc around factories, warehouses etc. Due to their cost and size they have never been as widespread as printed barcodes, and despite the hype, are unlikely to ever fully displace barcodes.

From a privacy point of view, a barcode label is much less likely to be read or scanned remotely without a customer being aware of the process than a still active RFID tag on consumer goods.


2. Electronic Product Codes the dark side of RFID ?

The RFID tag "visionaries" at the MIT/University of Cambridge Auto-ID Center which has, from 1st November 2003, mutated into EPC Global Inc. aas the commercial and standards bandwagon gaines momentum, are talking of a "An Internet of Things", where every single object in commerce and the supply chain is allocated its own unique RFID tag and Electronic Product Code, based on ideas borrowed from the Internet DNS, IPv6 and XML.

These EPCs could be used with barcode technology, but they seem to be keen on promoting the potentially more privacy intrusive RFID tags, although the standards bodies which set the rules for barcodes seem to fully support EPCs.

Ultimately, the back-end database systems being proposed for Electronic Product Codes could prove to be far more of a privacy threat to consumers than the RFID tags themselves.

These are not just some academics doing research, they have funding from some of the largest companies. It is only through privacy advocate pressure, that they have had to pay lip service to deactivating or "killing" RFID tags, a concept which was not in their original plans, and which none of the RFID trials so far have demonstrated.

They have not come up with any answers to questions such as:

This technology is in the early stages and consumer privacy pressure could still influence their plans.


3. Is constant exposure to UHF radiation safe ?

Current RFID tags in the UK which may be read remotely by equipment which consumers and shop staff will be exposed to works either at High Frequency 13.56Mhz, with a nominal range of 5 metres, or at Ultra High Frequency 868Mhz. This latter frequency is very close to the 900 MHz frequency used by a lot of GSM Mobile Phones. UHF frequency bands for EPC Auto-ID chips vary from 868Mhz in the UK/EU to 915MHz in US/Japan, so currently, a single frequency UHF tag will not work worldwide (multi-frequency ones may be available, but they must cost more).

People have been worried about the potential health risks of GSM Mobile Phones and Phone Transmitters, which are much more powerful radio energy sources than RFID tag readers.

Are there potential health risks to customers and staff from the hundreds of RFID tag readers in a supermarket full of "intelligent shelves" constantly transmitting, as they read each unique RFID tag in sequence ? Nobody knows, because the trials so far have not yet wired up a whole supermarket with this technology.

The Auto-ID Center and the large supermarkets should be sponsoring and publishing research into possible long term health effects now, not years after the widespread introduction of the technology as happened with the Mobile Phone industry.

Do we really need more electrosmog ?

What are the Shopworkers Trades Unions doing to inform themselves and their members about these potential risks ?


4. A law about RFID tags ?

Opponents of RFID tags in the USA such as CASPIAN are calling for legal restrictions on secret RFID tagging of consumer goods.

Nobody should be fooled into granting the manufacturers of RFID tags or EPC database technology legal protection from criminal or civil liability for selling products which fail to prevent terrorist attacks or which give false alarms, which some of them are seeking under the dubious so called SAFETY Act (Support Anti-Terrorism by Fostering Effective Technologies Act) of 2002 in the USA.


5. Are RFID tags covered by computer "hacking" laws ?

One possible solution to the RFID priavcy issues with respect to consumer level RFID tags is to consider the RFID tag chips to be "Computers" in which case the UK Computer Misuse Act part 1 "unauthorised access" (penalty up to 6 months in jail) and the UK Data Protection Act apply to these systems.

The "personal data" under the DPA also includes simple serial numbers (such as those storred in RFID tags) which can be used as a lookup or cross-reference in another computer (or manual) record or database system.

The Principles of Data Protection need to be complied with, especially those involving the informed consent of the customers.

It will be interesting to see if it is legal for supermarkets etc. to "snoop" on other retailers RFID computer chips or on the RFID computers which have been sold to customers as part of the packaging or even embedded within products themselves.


6. RFID and Product Recalls

The talk of "more efficient" appliance and food product recalls, which is being used to justify not "killing" RFID tags at the checkout, is completely unrealistic. Do the people who advocate this actually have any real shopfloor retail experience ?

Many "own brand" goods do not require an RFID tag with an individual serial number in order to be replaced if faulty - consumers could only reasonably have got the item from from an authorised outlet. High value items already have printed or visible serial numbers e.g. motor vehicles, computers etc.

How will the consumer experience of returning a faulty product for a refund or replacement be in any way enhanced by RFID tags which are still active on it ? The shop assistant will still have to handle and inspect the goods for damage etc. so where is the saving in time and effort and therefore cost that a still active RFID tag will produce?

The difficulties with making an RFID tag equivalent to a proof of purchase receipt with price transaction details, or to act as a warranty document, are huge, and open to obvious frauds.

If someone steals an item which is still actively RFID tagged and returns it to shop or retailer for a refund or in part exchange for other goods, then either they will no longer have to produce a separate proof of purchase receipt, or the shop will be tempted to start demanding personal identification documents before they exchange faulty goods.


7. RFID no use against CBRN terrorism and criminal contamination

Will RFID tags strengthen our defences against terrorist or criminal poison or contamination attacks on food or pharmaceutical products ?

Such products already have product barcodes and lot traceability numbers. The Auto-ID approach to individual identification of such items via a unique Electronic Product Code will make no appreciable difference to the speed at which possibly contaminated or faulty goods can be recalled or removed from sale.

If mineral water contains traces of benzene, or citrus fruits contain mercury, or headache capsules contain cyanide, or beef products contain prions or any of these are even suspected of being contaminated then all the current stock on the shelves has to be withdrawn. Consumers cannot trust a manufacturer or distributor to say these items may be risky, but these others on the same shelf are ok, even if this is actually true.

Existing lot/batch tracebility systems work perfectly well for recall identification purposes. Where they do not work is due to criminal retailers who re-sell substandard or condemned food or goods, which RFID tags, invisible to the normal consumer, will not prevent.

There is now some hype about research programmes which hope to link biosensor chips with RFID tags These are supposed to react to Chemical or Biological weapons and then let the RFID tags signal an alert, rather than causing a colour change on a label etc.

This plan must inevitably lead to hugely expensive and disruptive false alarms, when, for example, organophosphorus pesticide residues get mistaken for the chemically similar nerve agents (just like during the invasion of Iraq, where state of the art, non-miniaturised equipment operated by trained soldiers gave false alerts, leading to the donning of gasmasks and to as yet unsubstantiated claims about having found Weapons of Mass Destruction). If the RFID tags which are linked to these biosensors are of the "stupid" insecure variety, then a hoaxer or terrorist or extortionist would be able to sit in a van in the car park of a supermarket and trigger false anthrax etc alerts remotely by radio.

Before anybody lets Biosensor RFID tags loose in the food supply chain, it should be established what is the acceptable level of false alert for such systems. If the system only falsly reported the presence of a pathogen once in a million times, then we would have a Bioterror alert every single day of the year, rendering the emergency services useless.

We simply do not believe that such biosensors can be made reliable enough and cheaply enough with cheap RFID tags to be deployed as envisaged.

There is a case for much more CBRN (chemical, biological, radiological or nuclear) monitoring, which may well make use of cheap biosensor chips, but these should be from permanent monitoring stations run by trained people and inspectors, who can corroborate alerts. Leaving this up to fully automated systems run by the food industry (parts of which is criminally negligent) is literally a recipe for disaster.

It is hardly likely that the ammunition and weapons used by criminals and terrorists will ever get RFID tagged, so the talk about using RFID to fight terrorism or serious crime is just hype.

Some RFID promoters seems to be trying to get their products on the US Government Homeland Security approved list for exemption from civil liability for causing false alarms under the so called SAFETY Act (Support Anti-Terrorism by Fostering Effective Technologies Act) of 2002, presumably to get funding to subsidise their research and development budgets, and to get the US Government to purchase lots of their products.


8. Radio Tags - another Wi-Fi ?

"Ye cannae change the laws of physics". Just because a standard RFID reader has limited range, more sensitive/longer range ones will always be available.

Lessons should be learned from Wi-Fi 802.11b Wireless LAN cards and Access points which are nominally designed for a range of less than 30 metres. These can be used with better commercial or homebrew antenna designs, up to 70 kilometres or more.

Unless RFID tags are deactivated as a matter of routine, they will be snooped upon by the unscrupulous, at ranges far in excess of that of standard reader equipment.

If the tag "killing" /deactivation process is not secure, then they could be re-activated in secret at extended ranges as well.

It may be possible to "kill" a whole supermarket full of RFID tags, from a vehicle in the car park.


9. RFID in banknotes unlikely to work as feared

We are not convinced by the fear and alarm espoused over the possible near future trials of embedded RFID tags in European Union or Japanese high denomination bank notes. The fear is that these could somehow be used to remotely track formerly anonymous cash transactions. Tracking large amounts of anonymous cash issued by ATM machines or by bank tellers can already be done by Optical Character reading of the Serial Numbers, RFID is not required.

Hitachi are now denying reports about embedding their RFID tags in banknotes, etc as an anti-forgery device. Their mu chip has its antenna onboard the silicon chip, and therefore has a very short range (normally measured in millimetres, potentially only centimetres at high RF power)

The technical problems presented in trying to discriminate each individual RFID tag in a stack of banknotes are formidable. How do you stop the RFID antennas from interfering with each other when hundreds of them might be stacked one on top of the other ? Random placement of RFID tags in a banknote would surely cause lots of counterfeit false alerts, they will have to be in a standard position, only separated by the two halves of the thickness of adjacent pieces of banknote paper i.e. much less than the wave length of the radio signals.

How will it be possible to provide enough Radio Frequency energy to remotely power all the passive RFID tags, in a wad of say 50 banknotes, without exceeding the safety/interference power levels laid down for the Radio Frequencies ?

It might just be possible to track a single RFID embedded banknote, but this would be impractical, if several such banknotes together in a wad cannot be tracked.

A banknote is a very physically demanding environment for an RFID tag. Unlike a the RFID tag paper labels, which are normally stuck onto packaging, banknotes are subject to all kinds of wear and tear and have to survive washing machines etc.

Any hard, brittle, sharp edged silicon chip embedded into a banknote will increase the wear and tear and possibly drop out of the banknote after a while, especially if the antenna uses printed conductive ink rather than a metal foil antenna.

Increasing the thickness of the paper or plastic of a banknote to, say, credit card thickness, in order to make them more robust would have a serious knock on effect on Automatic Teller Machines and Vending Machines - you might only get half or a third as many thicker RFID tagged banknotes into the feed cassette, which will then require more frequent re-filling or emptying, increasing the cash handling costs.

In badly designed banknote currencies, notably the old USA $1 and $100 bills, which are physically the same size, petty fraudsters with skill and patience have been known to slice the bills in half edgewise with a razor blade, and then convert $100 plus $1 into two bills one of which has a genuine $100 front and another with a genuine $100 back, and which have the correct "feel" of a banknote, since the other sides are halves of the genuine $1 bill. Embedding an RFID chip and antenna inside the thickness of a banknote will only make such a de-lamination fraud even easier to achieve.

There may be a case for various RFID marker techniques to be incorporated into future banknotes, such as so called "Chipless RFID", but these technologies e.g. CrossID using multiple chemicals (the toxicity and persistance of which in a banknote environment are unknown), or Inkode using a mixture of short metal fibres in conductive ink. However, these have not been shown to be able to produce consistently readable "unique" serial numbers, and so probably do not offer much of an advantage over say "genetic marker" or "Smart Water" techniques against forgery. These technologies may be better suited to say Bearer Bonds or Share Certificates which are more valuable and expensive than banknotes, but suffer from much less physical wear and tear.

The suggested Radio Frequencies used by such "Chipless RFID" i.e. 10GHz to 70 GHz is well into the military satellite communications and millimetre wave radar frequencies, which could present interference and possible health problems with the reader equipment. Passive Millimetre Wave Radar Cameras are can "see under your or your children's clothing" which presents a whole slew of privacy and child porn problems. When such camers become more widespread (at airports and , apparently, on the streets) anybody who shields their RFID tagged money or other items with metal aluminium foil etc. could come under suspicion of carrying concealed weapons etc.


10. Full Smart Card crypto handshake tech for less than a penny ?

Current Smart Card technology, incorporating memory, microprocessors, specialised cryptography processors and reasonable tamper resistant technology cost from £5 to £50 each. These have in fact been used used in RFID tags for large items such as shipping containers, pallets, stillages etc in warehouses or factories.

If it were possible to make these chips cheap enough for Auto-ID RFID tags on everything you buy in the shops, then some of our privacy concerns would be assuaged. However, this is simply not the case, and the style of primitive RFID tag shown above in the Tesco trial, without all the built in safeguards could overtake the market, unless consumers and privacy advocates say no.


11. EPC Global Inc. should forbid "stupid" RFID tags from the standards

As the unit price of RFID tags falls towards the target of under a penny each, unless automatic systems for "killing" tags at the checkout are developed and tested at the outset, some accountant or manager will award themselves a bonus when they calculate that it will cost more in checkout staff time or customer queues at peak times, to "kill" a tag than to buy a new one. They will then try not to bother with tags that can be "killed" or will "save" on the equipment needed to do so, to the detriment of consumer privacy.

The current lip service attitude to the implementation of security of the "Kill" command can be demonstrated by comparing the specifications for EPC Class 0 and EPC Class 1 Ultra High Frequency tags The Class 0 tags using a 64bit EPC serial number have a DESTROY password of 24bits, but the newer Class 1 tags (as favoured by the giant Wal-Mart supermarket retailer) with a 96bit serial number will only have an 8 bit KILL password i.e. even less secure. Neither of these is protected by a secure encrypted handshake protocol, and so is vulnerable to Denial of Service attacks and worse.

AutoID Inc, the Uniform Code Council, EPC Global Inc, and all the corporate sponsors of the Auto-ID Center should publically repudiate the use of "stupid" RFID tags like those in the Tesco trial, on consumer goods outside of the warehouse or supply chain.

These bodies which are developing future international standards for RFID tags and their Electronic Product Code, should explicitly forbid the use of RFID tags and readers which are too stupid to be securely disabled permanently or which can be easily spoofed.


12. Who is campaigning on RFID privacy issues ?


13. Consumer protests against RFID tag trials

There was a demonstration outside the Cambridge Tesco superstore on August 9th 2003, which was testing the RFID tags in Gillette Mach 3 Razor blade packages.

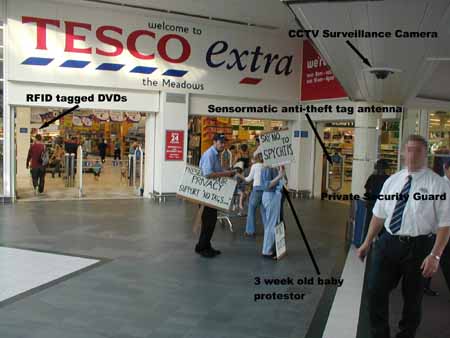

NoTags organised a protest at the Tesco Sandhurst store on Monday 15th September from 5.30pm. c.f. Re-scalable map showing the location of the Tesco Extra superstore in Sandhurst. Here is a photo of the event:

NoTags RFID tag protest , Tesco Extra, Sandhurst, 15th September 2003


14. Tesco Sandhurst RFID tagged DVDs

MeadWestvaco Radio Frequency ID tags used on DVDs - trial at Tesco, Meadow Park, Sandhurst, UK - July 2003

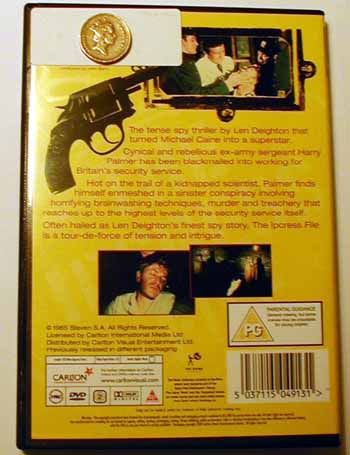

 MeadWestvaco RFID tag embedded in a paper label on DVD case, one pound coin for size reference

MeadWestvaco RFID tag embedded in a paper label on DVD case, one pound coin for size reference

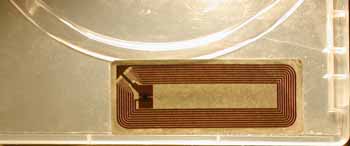

 MeadWestvaco RFID tag with top layer of paper removed on standard DVD case

MeadWestvaco RFID tag with top layer of paper removed on standard DVD case

 MeadWestvaco RFID tag with top layer of paper removed

MeadWestvaco RFID tag with top layer of paper removed

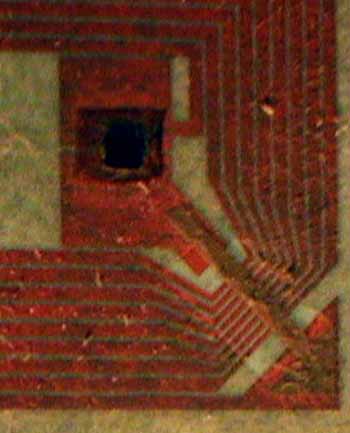

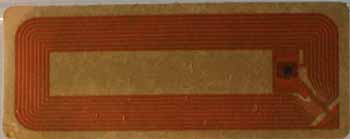

 Closeup of MeadWestvaco RFID tag with top layer of paper removed

Closeup of MeadWestvaco RFID tag with top layer of paper removed



RFID Journal has an article: Tesco Tests Low-Cost RFID System

Tesco are trialling MeadWestvaco Intelligent Systems tags for their pilot at their Sandhurst Tesco Extra superstore south west of London. These RFID tags are embedded in paper labels and operate at High Frequency i.e. 13.56 MHz and use an innovative reader antenna sharing scheme which reduces the number of expensive readers required, at the cost of taking longer to poll all the stock on the shelves. This has the effect of making these readers less useful for linking to RFID triggered CCTV surveillance, which has been attempted in the Auto-ID labs, and possibly at the Gillette razor trial in the Cambridge Tesco store (which has now ended, almost certainly not due to any privacy or consumer activist pressure).

Since most supermarkets have lots of continuous CCTV Surveillance anyway, the extra "security" that RFID triggered CCTV Surveillance provides must be doubtful. However the combination of RFID Smart shelves and CCTV will be potentially very privacy intrusive if it is aimed at analysing the "browsing" habits of consumers.

The DVDs in this trial are already encased in standard Sensormatic (one of the Auto-ID sponsors) tagged anti-theft plastic cases which are removed at the checkout. The DVDs already have standard printed product barcodes.

N.B. The MeadWestvaco RFID tag is NOT "killed" or deactivated when the customer pays for the DVDs at the checkout, and can still be read remotely, as was demonstrated by Channel 4 television "Chips with everything" by David Rowan on 27th July 2003.

Unless such RFID tags are deactivated permanantly at the checkout, this technology should not be permitted to be inflicted on unsuspecting customers, and should remain where it belongs in the warehouse and supply chain.

Tesco deserve criticism for not informing their customers about the privacy implications of these particular RFID tags.


15. Marks & Spencer clothing tags

Marks & Spencer seems to be set to launch a large scale RFID tag trial in some of their clothing ranges, this Autumn 2003. The Intellident RFID tags promise to work at the 868Mhz Ultra High Frequency and therefore have a much longer read range than other RFID tags tested in the UK using the 13.56Mhz High Frequency.

The previous trial of 13.56MHz High Frequency tags on the plastic trays used to transport food deliveries from Marks & Spencer's suppliers i.e. not on the individual food packaging, and therefore does not present a consumer privacy problem.

It still remains to be seen if Marks & Spencer plans to go down the route of secret experiments on their customers, using RFID tags that are not deactivated at the checkout, like Tescos have done, or if they have learned from the privacy concerns of the public.

Update on the M&S High Wycombe trial
It seems that Marks and Spencer are giving some attention to consumer privacy in the first of their clothing RFID tag trials, initially for 4 weeks (October - November 2003) on on suits, shirts and ties. at their High Wycombe store around OctoberNovember 2003.

Computer Weekly also has an article: Marks & Spencer begins the UK's largest in-store trial of RFID tagging technology

M&S; have produced some leaflets explaining something about the RFID tags to their customers, for which one has to hunt around for in the High Wycombe store. This is only a slight improvement over Tesco who try to keep their customers in ignorance.

The paper label RFID tags are removeable i.e. a separate label on the ties and suits, or on the shirt wrapping, rather than the Texas Instruments type RFID tags designed to be embedded in clothing and capable of withstanding laundry processes.

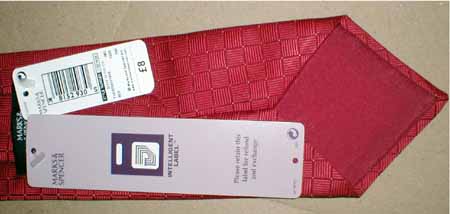

Marks & Spencer RFID tag printed side

Note the "Please retain this label for refund and exchange" printed on the label

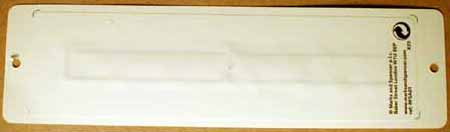

Marks & Spencer RFID tag Intelligent Label side

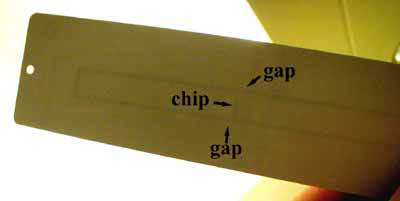

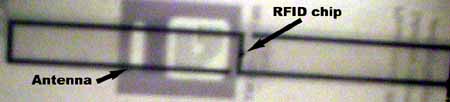

shadow of the RFID chip and antenna

Shadow of the RFID chip and antenna when held close to a lamp.

There are, in fact no RFID readers in evidence in the High Wycombe store men's clothing department, which is relatively small, with probably only a couple of hundred tagged shirts, suits and ties.

Given the public relations silence on the topic so far, it must be assumed that this latest M&S RFID tag trial still does not seem to comply with the Auto-ID Center's idea of a tag that can be "killed" or disabled electronically at the checkout, and that there is no strong authentication handshake which would allow only M&S RFID readers to interrogate them.

Therefore the privacy concerns (similar to those over "third party cookie tracking" profiles compiled from internet web site surfing) still remain.


November 2004 trials

Marks & Spencer
Intelligent Label RFID tag trial
Menswear department
Marble Arch store, Oxford Street, London, November 2004.

Apparently there are six Marks & Spencer stores participating in this latest RFID tag trial until December 2004, This press release from March 2004 implies that that the six stores are probably Aylesbury, Camberley, Ealing Broadway, High Wycombe, Kingston and Marble Arch

Comapred with the original trial in 2003 at High Wycombe, the tags seem be restricted to suits and jackets only, with no tags on ties or inside shirt wrappings

These Intelligent Labels seem to be the same sort as before, except that the printing has been simplified. The back of the label is now just plain white, instead of having a glossy white sticker with just the Marks & Spencer copyright information , HQ address, website URL, "ying/yang" arrow symbol and printing reference codes, all of which information now appears at the bottom of the face of the label.

"MARKS & SPENCER" still appears at the top of the label.

The "circuit board" graphic and "INTELLIGENT LABEL TM" has been replaced by the simpler "INTELLIGENT LABEL TM FOR STOCK CONTROL" in the centre of the label. This could be due to confusion with the other labels on some of the menswear which in the High Wycombe trial was labelled as allegedly "intelligent fabric" or the Marble Arch one as "urban wear" fabric, which "breathes" moisture and does not need ironing etc.

The words "Please retain this label for refund and exchange" have now disappeared from the label.

Otherwise, the Marble Arch trial environment seemed to be similar to the High Wycombe one, with absolutely no notices, displays or leaflets informing the Customers that they were taking part in an experimental trial of any sort.

There is no RFID scanning equipment at the payment till counter, and therefore no "killing" of the RFID tag once the individual garment has been purchased. We noticed Staff and Customers blissfully unaware that the newly purchased clothing being wrapped up in a plastic suit bag still had its RFID tag label attached.

Approximately one or two RFID tags per rack seemed to be sticking up, presumably due to Customers' handling of the garments. Several of these tags were bent or folded, which may be significant in causing a few of these paper labels to fail to be read by the scanner. Higher frequency, longer range, more compact tags would probably reduce this potential problem.

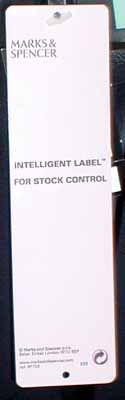

   Front of Intelligent Label November 2004 trial  Reverse of Intelligent Label November 2004 trial

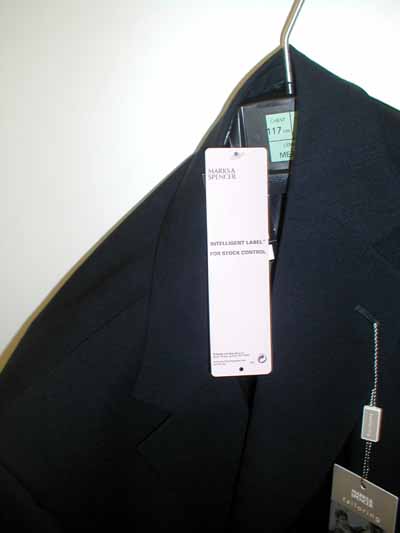

 Overview of jacket with label


16. VeriChip human implanted RFID evil

There is a USA based company called Applied Digital Solutions which seems to be intent on selling the creepiest and most threatening versions of RFID tags - ones which are implanted under the human skin.

These VeriChips work on 125KHz which copes better than the High Frequency 13.56MHz or Mobile Phone frequency range (868 - 930 MHz) Ultra High Frequency RFID tags, with absorbtion by the mostly saline liquid human body. Their range is limited, but seems to be sufficient for door scanners. Naturally, although these RFID tags contain a unique serial number, this is not compliant with even the weak EPCglobal standards for privacy, and they are too "stupid" to be "killed" or decativated even temporarily. Obviously removal of the tags requires another surgical operation.

These so called "security" chips are the 21st century version of permanent cattle brands (indeed the original market for Verichips is for prize cattle and pet cats and dogs) or tattoos.

We find the concept completely unethical, bordering on actually evil. What is there to prevent this technology being used by exploiters of slave labour, pimps and brothel keepers, religous cults, abusive or paedophile parents or police states in order to control the movements of their victims and to prevent escape via actual alarm systems or the fear that "we will track you down if you try to escape" ?

They are being sold to the Latin American and Russian markets, aimed initially to exploit the fears of rich parents who fear that their children may be kidnapped, and who are therefore willing to electronically brand them in the vain hope that this will somehow make it easier to trace kidnap victims.

The alternative market to the forced branding of children who are in no position to object is to electronically brand vulnerable adults, e.g. those with Alzheimer's disease, again, a process likely to happen without fully informed consent. The company is also selling the concept of access to online medical records via the VeriChip RFID serial number.

If we have expressed doubts about the security and privacy implications of the EPCglobal back end "internet of things" databases, then these worries are multiplied by orders of magnitude when it comes to VeriChip databases containing details of children or vulnerable adults with, in some cases their online medical records.

The VeriChip distributor in Mexico Solusat, is proudly claiming links with the Mexican Red Cross for access to Medical Records, and the National Foundation of Investigations of Robbed and Missing Children

Why then, is Solusat not using SSL/TLS session encryption on the website through which the VeriChip RFID tag registration details and medical records can be accessed ?

Why is the SQL Server administrator account and password apparently visible to any hacker or corrupt employee, simply by inspecting the HTML source code of this website ?

This would be bad enough if the only thing that they were putting at risk was credit card details, but to put Children's details and Medical Records at risk over the internet or to corrupt employees in this way is criminal negligence.

The latest nonsense from the company is VeriPay, an attempt to try to convince people that electronic payments could be safely authorised using their crude technology which does not employ encrypted authentication handshakes, instead of a normal credit card.

Of course, many fundamentalist Christians see RFID technology, but especially VeriChips as the Mark of the Beast:

"Moreover, it caused everyone, great and small, rich and poor, slave and free, to be branded with a mark on his right hand or forehead, and no one was allowed to buy or sell unless he bore this beast's mark, either name or number. (Here is the key; and anyone who has intelligence may work out the number of the beast. The number represents a man's name, and the numerical value of its letters is six hundred and sixty-six.)
(Revelations chapter 13: verses 16-18)"

Any reputable companies deploying RFID tags would be well advised to help get these evil RFID human implants banned, or risk getting tarred with the same brush.


17. Forthcoming Conferences which need Consumer Privacy input

It is very worrying that past industry conferences on RFID and Smart Labelling seem to totally ignore any Consumer Privacy worries. e.g. Smart Labels Europe 2003 or the forthcoming conference in London on October 7th 2003, or the Eurotag Workshop in Cambridge (UK) on 15-16th October 2003.

The Home Office has spent £5.5 million of taxpayers money on their Chipping of Goods Initiative, on some pilot schemes aimed at combating stolen or counterfeit goods, some of which involve RFID tags. Apparently at least one of the Tesco RFID trials got some public money under this scheme.

It might be worth the media and others asking the Minister and other keynote speakers at the Chipping of Goods Initiative Conference in London on 13th-14th of November 2003 about what they intend to do to allay our Consumer Privacy fears. N.B. this conference has now been cancelled, thereby denying Consumer Privacy campaigners the chance to question the politicians, civil servants and industry leaders.

Shortly thereafter, the RFID Privacy Workshop was held at 9:00am - 5:00pm, Saturday November 15th 2003, Bartos Theater, Massachusetts Institute of Technology, Cambridge (near Boston), USA.


18. RFID privacy websites and blogs


  • EPC UHF Generation 2 protocol

    19. EPC UHF Generation 2 protocol

    Will the still unpublished EPC UHF Generation 2 protocol improve the security and privacy and range of EPC compliant RFID Tags ? According an article in RFID Journal, a candidate standard has been submitted by 13 RFID chip suppliers, including the giant Phillips and Texas Instruments, so there is a very good chance that their views will prevail.

    The new standard is supposed to replace the Class 0 and Class 1 chips:

    "The proposed specification describes a 96-bit field-programmable RFID tag that can operate in the UHF spectrum (868 to 956 MHz) globally and supports secure communication between reader and tag. The protocol includes a 32-bit kill command that renders the tag inoperable. Allen says systems using the protocol would be able to read 1,700 tags per second in North America and 600 per second in Europe, where there are tighter restrictions on the power output of readers."

    Compared to the existing weak 24 bit Class 0 and the trivially weak 8 bit Class 1 "Kill Codes" the proposal to have a 32 bit one must be an improvement, but whether this actually offers any real improvement in security from Denial of Service attacks or actually helps with Privacy is still open to question until the full specification and the alleged "secure communications between reader and tag" are explained.

    It will still be possible for developers and retailers to be stupid and to program one master "kill code" into a batch or an entire warehouse full of RFID tagged goods, instead of allocating a separate, random "kill code" to each RFID tag, which would then have to be retrieved securely from a database at the checkout.

    EPC Class 1 Generation 2 RFID tag specification available online

    For those of you who like us, seem to read, and try to understand lots of highly technical documents, try the Class 1 Generation 2 UHF Air Interface Protocol Standard Version 1.0.9 (.pdf)

    "This EPCglobal Board Ratified standard defines the physical and logical requirements for a passive-backscatter, Interrogator-talks-first (ITF), radio-frequency identification (RFID) system operating in the 860 MHz - 960 MHz frequency range. The system comprises Interrogators, also known as Readers, and Tags, also known as Labels."

    This is the standard around which all the big electronics companies are producing their new RFID tag products, with promises of better, faster, more simultaneous tag reads per second, greater range etc.

    Points of interest to Privacy / Security campaigners:

    Obviously, based on past experience, the actual product implementations of this standard, may have other privacy or security issues, in addition to those listed above.


    20. Future RFID technology - Real Soon Now


    21. RFID tag activated bombs

    Given the one way trust nature of the protocols, where the RFID tag betrays vital information to any reader device, promiscuously, there is no reason why terrorists or military opponents could not easily target individuals or groups of individuals with landmines, booby traps etc. based on the RFID tags which are detected on a person e.g. a bomb which only kills rich American or European tourists or singles out military personnel from the local civilian population.

    The current plans to include contactless RFID chips in, for example, the new USA Biometric Passports, without any encryption at all, will lead to easier automated target reconaissance for terrorists, who will no doubt program a bomb to wait until several US Citizens are within range before detonating itself automatically.

    The UK Government must not put its citizens at risk from this sort of technological short sightedness. Why make a rod for our own backs ?


    22. RFID industry lobbyists

    There seems to be an a good deal of heavyweight political lobbying by the RFID industry, especially in the United States of America.

    Savi Technology press release:

    "TOM RIDGE - FIRST U.S. HOMELAND SECURITY SECRETARY - JOINS SAVI TECHNOLOGY'S BOARD OF DIRECTORS

    Former Secretary of the U.S. Department of Homeland Security Brings Extensive Government Leadership Experience to Savi - a Provider of RFID-Based Solutions for Global Supply Chains

    SUNNYVALE, Calif. - April 5, 2005 - Savi Technology, Inc., a leading provider of active RFID solutions for supply chain management and security, announced today the appointment of Tom Ridge, the first Secretary of the U.S. Department of Homeland Security and former Governor of Pennsylvania, to the company's Board of Directors."

    Obviously having the access that a "friend of President Bush" with a rolodex of contacts in the vast Homeland Security empire must be valuable to an RFID supply chain logistics company, especially with massive contracts like that for the RFID chips and readers for the new US Biometric Passport, which will be awarded by the Department of Homeland Security. at stake.

    ZDnet reports:

    "Tommy Thompson, the Health and Human Services Secretary in President Bush's first term and a former Governor of Wisconsin

    Thompson has joined the board of Applied Digital (N.B. Flash only website), which owns VeriChip, the company that specializes in subcutaneous RFID tags for humans and pets, , is going to get tagged.

    To help promote the concepts behind the technology, Thompson himself will get an RFID tag implanted under his skin.

    Obviously getting the US medical authorities approval for the invasive, unecessary human minor surgery required for such implants would be beneficial to VeriChip.

    Let us know of any more interesting political lobbyists for RFID tags, especially in the UK or at the European Union level.


    Return to the

    Watching Them, Watching Us
    Home Page

    Spy Blog

    email: [email protected]
